SPN 700 Eco 400V table saw for concrete blocks
Reference
PK70N
Reference
Availability
Technical Data
- Weight: 144 kg
- Engine power: 4 kW
- Voltage: 400 V
- Engine: Elektryczny soga Italy
- Fuel: Nie dotyczy
Description

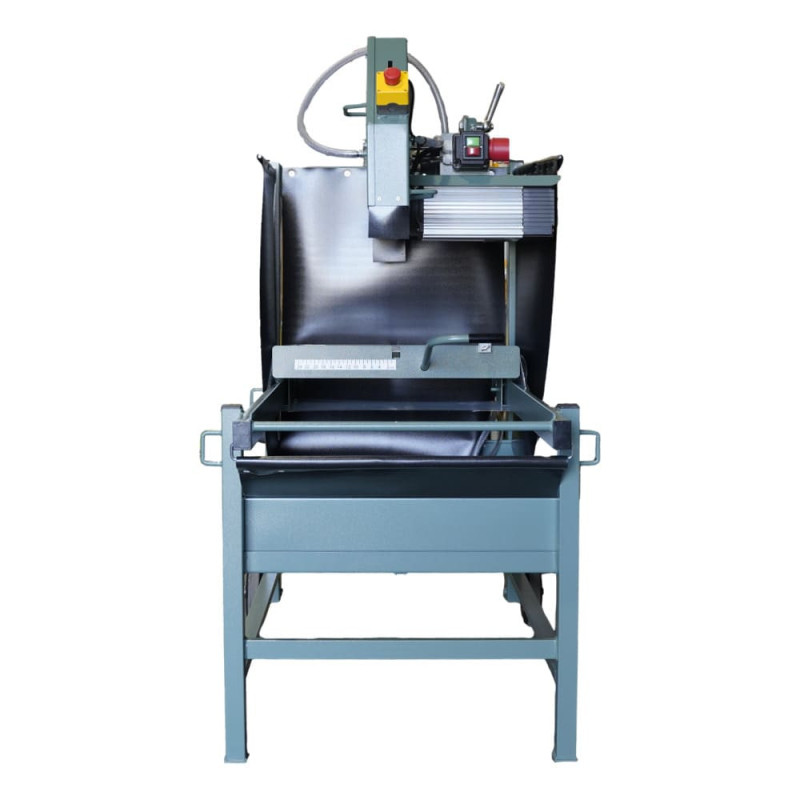

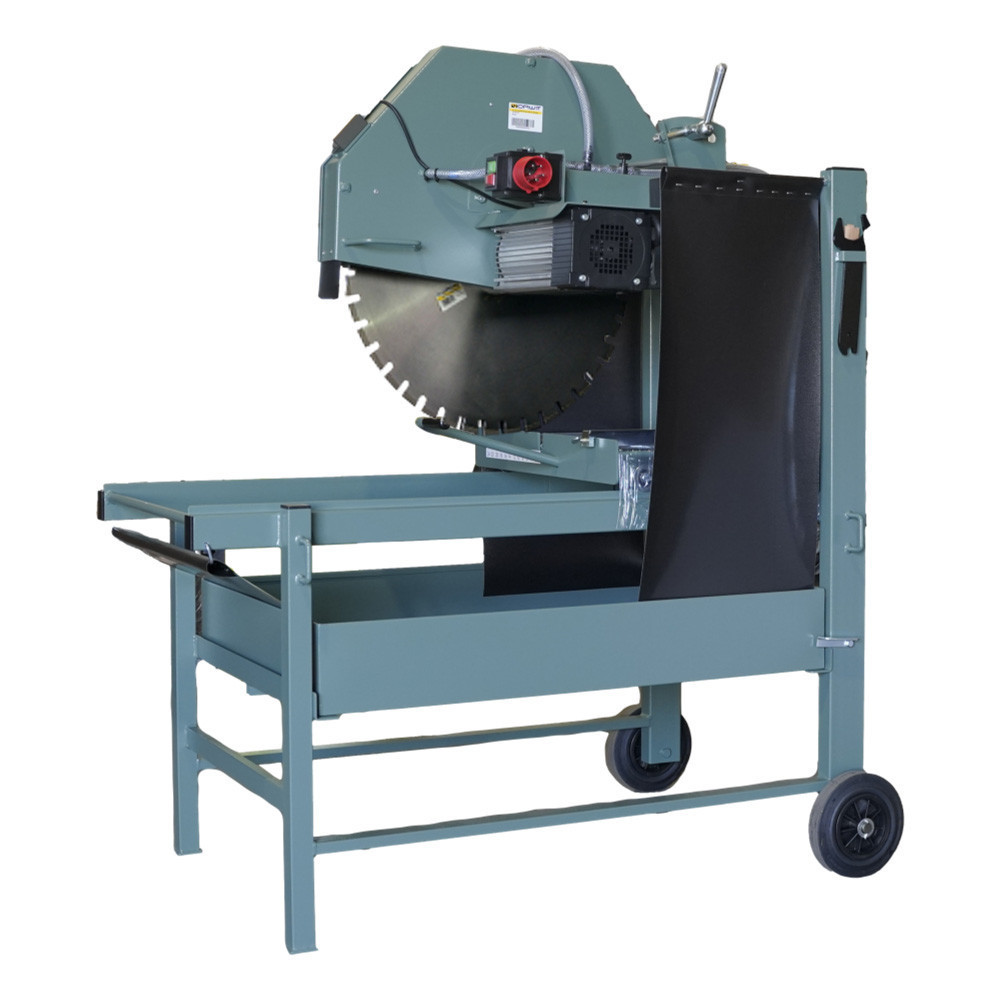

SPN 700 Eco 400V table saw for concrete blocks
The SPN 700 Eco 400V table saw is a professional machine designed for cutting a variety of construction materials, such as hollow blocks, bricks, paving slabs, granite and stone. With its advanced design and high performance, it is ideal for professionals in the construction industry.
Efficiency and precision cutting
- The 700mm diameter blade provides exceptional cutting performance and precision.
- The ability to cut through higher materials in stages increases the versatility of the machine.
- The maximum cutting depth is 285 mm, and the cutting length is 750 mm, which allows you to work with large parts.
Robust construction
- Made entirely of steel, the saw is galvanized and powder-coated to protect it from corrosion.
- Equipped with steel bearing casters and steel guides for easy transport and stability during work.
- A locking device on the table allows precise positioning of the cutting area.
Advanced features
- Soga Italy's 4 kW electric motor ensures reliability and efficiency.
- A three-phase circuit breaker with an emergency button on the blade guard increases the safety of use.
- Disc cooling is provided by a single manifold tube for optimal working conditions.
Ease of transport and storage
- The saw is equipped with two wheels and lifting handles for easy transport.
- A locking table and tub ensures stability during storage.
Discover other 500 - 1000 mm hollow block saws available in our offer and find the perfect solution for your needs.
Product Details
Reference: PK70N
- Weight
- 144 kg
- Engine power
- 4 kW
- Voltage
- 400 V
- Engine
- Elektryczny soga Italy
- Fuel
- Nie dotyczy
- Speed
- 1400 obr./min
- Maximum cutting length
- 750 mm
- Disc diameter
- Ø 700 mm
- Dimensions of the table
- 610 x 450 mm
- Maximum depth of cut
- 285 mm
- Working dimensions
- 1340 x 870 x 1370 mm
- Minimum power of the generator set
- 13 kVA
- Disc bore diameter
- 30 mm
- Maximum weight of cut material
- 80 kg
- Electrical protection
- IP 44
