Hydraulic laying gripper HVZ-UNI-II-EK with adapter for herringbone system HVZ-FA-RE Probst
Reference
51400040-001
Reference
51400040-001
Availability
Technical Data
- Weight: 275 kg
- Working load limit: 400 kg
- Opening width: 580-1260 mm (główny chwytak) / 960-1440 mm (boczny chwytak)
- Back pressure: 20 barów
- Volumetric flow: 15-75 l/min
Po raz kolejny zdobyliśmy
Gazelę Biznesu- dziękujemy Wam!
Free delivery over PLN 1,500
24 years on the market
Own warehouse 1200 m²
Returns up to 14 days
Description

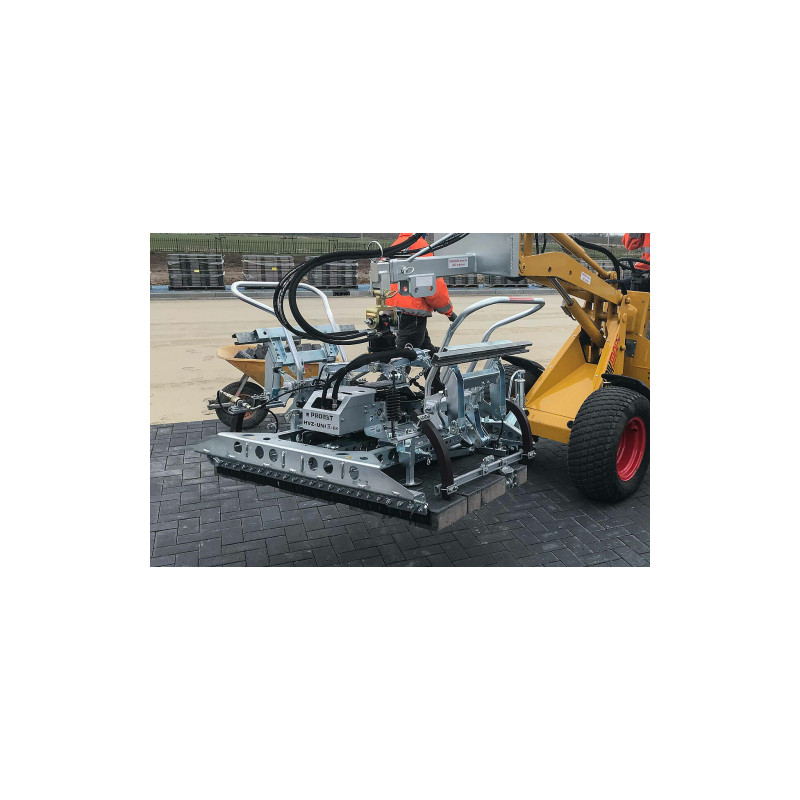

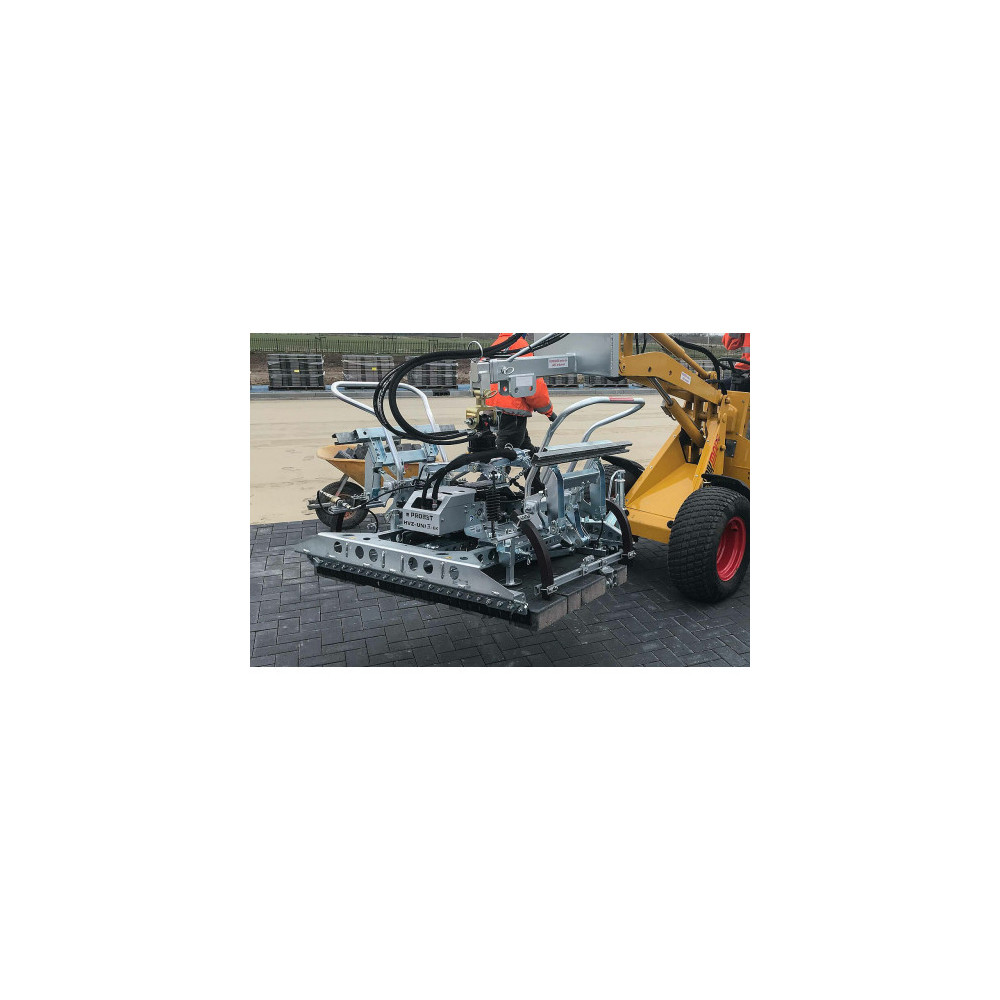

Hydraulic paving gripper HVZ-UNI-II-EK with adapter for herringbone system HVZ-FA-RE Probst - professional efficiency in action
The HVZ-UNI-II-EK hydraulic paving gripper with herringbone layout adapter HVZ-FA-RE Probst is the ideal solution for professionals looking for a fast and precise paving tool. Thanks to its versatility and reliability, it will work well for any project, whether for smaller paving companies or large construction companies. The device significantly speeds up work, increasing efficiency and reducing costs. Dedicated to laying herringbone pavers, it guarantees ease of use and accuracy in all conditions.
Compact solution with modern features
Probst's HVZ-UNI-II-EK grapple stands out for its robust design and optimized technical features. Its weight of 275 kg provides adequate stability, and a working load limit of up to 400 kg allows the safe handling of heavy materials. With variable opening widths of 580 to 1260 mm (main gripper) and 960 to 1440 mm (side gripper), the device adapts to different material dimensions, making it extremely flexible in use.
In addition, the device functions optimally at a back pressure of 20 bar and a volumetric flow of 15-75 l/min, which guarantees smooth operation and minimizes the risk of failure. Hydraulic connection in the range of 170 to 320 bar makes the gripper easily adaptable to different hydraulic systems. In turn, the maximum pallet height (50-160 mm) allows paving with high precision and at a fast pace.
Hydraulic paving gripper HVZ-UNI-II-EK with adapter for herringbone system HVZ-FA-RE Probst - available at NORWIT.PL!
When you purchase from NORWIT store, you can be sure that you are getting the highest quality product with warranty service. We offer a wide selection of pavers to meet any requirements. Check out other products in Ukladarki do kostki category and find the perfect solution for your needs!
Product Details
Reference: 51400040-001
- Weight
- 275 kg
- Working load limit
- 400 kg
- Opening width
- 580-1260 mm (główny chwytak) / 960-1440 mm (boczny chwytak)
- Back pressure
- 20 barów
- Volumetric flow
- 15-75 l/min
- Hydraulic connection
- 170-320 barów
- Maximum pallet height
- 50-160 mm
